12.06 Hiding SAP columns

Prerequisites

• Products: Liquid UI WS, Liquid UI Server or Local DLL, Client Software
• Commands: column()

Purpose

This article demonstrates how to hide columns in a native SAP table by setting their columnwidth() to zero. This action removes extraneous columns from the interface, simplifying the view without altering the underlying data. The Change Standard Order screen: overview screen will be used as an example.

1. Hide the SAP columns

Syntax

columnwidth()"table name, column name","options":values;

User Interface

//Create the file SAPMV45A.E4001.sjs inside your scripts folder for customizing the Create Standard Order: Overview screen
//Now, add the Liquid UI script to the above file, and save it.

Customization

1. Hide the columns in the SAP native table with columnwidth().



   // Hides columns in SAP table
   columnwidth("All items,SU",0);
   columnwidth("All items,Customer Material Numb",0);
   columnwidth("All items,ItCa",0);
   columnwidth("All items,Batch",0);
   columnwidth("All items,Engin.Change",0);
   columnwidth("All items,ATP quantity",0);
   columnwidth("All items,PayG",0);


SAP Process

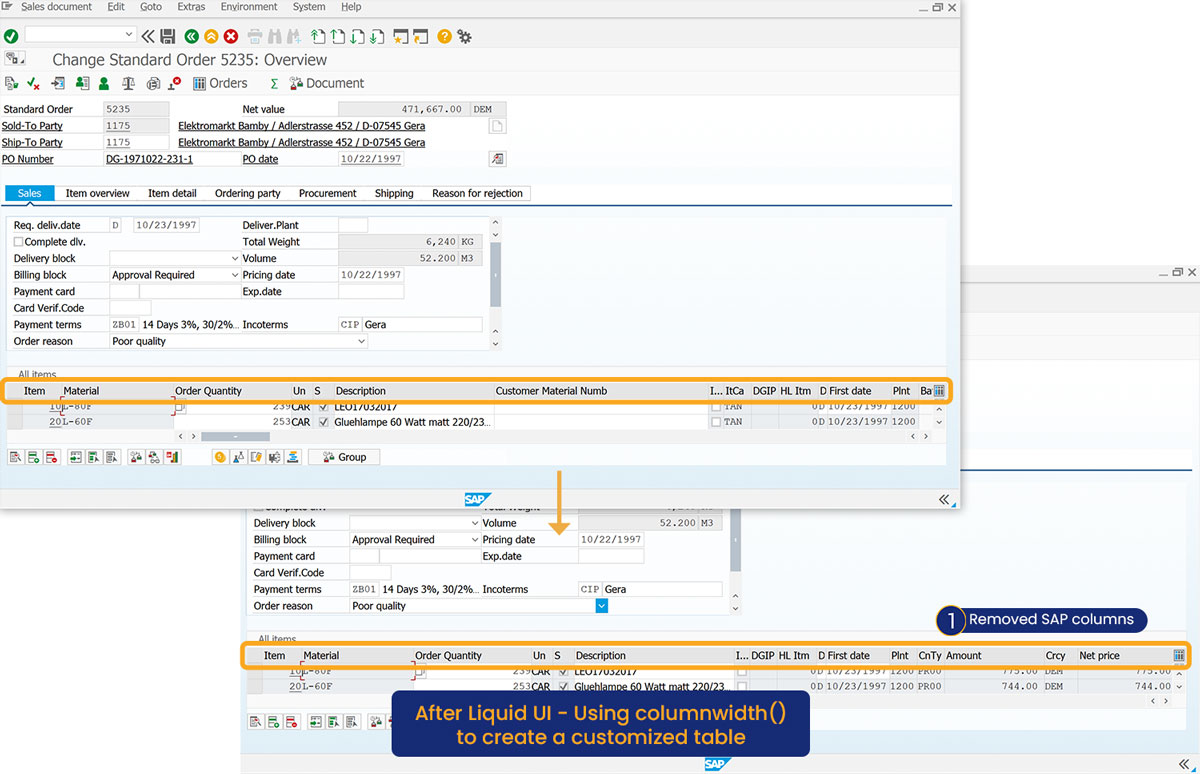

1. Navigate to the VA02 Overview screen. The specified columns will be hidden from the table, as shown in the image below.
